300L 600L PP PE PVC Mixing Machine 220V / 380V High Speed PVC Mixer

Packaging Details : Outside package:Stretch film

Supply Ability : 3 Set/Sets per Month

Price : CN¥63,492.00/sets >=1 sets

Na me : PVC Mixing Machine

mixer type : Agitator

barrel volume (l) : 300 / 600

material processed : Plastics, Chemicals

range of spindle speed(r.p.m) : 475 - 950 r.p.m

weight (kg) : 3600 KG

material : SUS304

product type : Detergent Powder

additional capabilities : mixer

place of origin : China

brand name : DEERMA

voltage : 220V/380V

dimension(l*w*h) : Referring

Power (kW) : 45 kW

warranty : 1 Year

key selling points : Long Service Life

machinery test report : Not Available

video outgoing-inspection : Provided

core components : motor

Model : SRL-Z300/600

Total capacity(L) : 300/600

Effective capacity(L) : 225/450

Motor power(kw) : 40/55/11

Spindle speed(rpm) : 475/950/130

Heating method : Electric Heating

Voltage : 380V

Application scope : Industrical Chemical Mixing

Condition : New

Application : mixer

Applicable Industries : Manufacturing Plant, Construction works

Showroom Location : None

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Max. Loading Volume (L) : 600 L

Max. Loading Capacity : 600

Port : Qingdao

Contact Now

300/600L Total Capacity PVC PP PE Mixer/mixing Machine Professional and Industrial 220V/380V Voltage

Mixer Machine

1.Widely used in mixing, drying, coloring for all kinds of resin such as PVC, PP, PE, ABS, PC, etc.

2.Composed of one high speed hot mixer and one cooling mixer.

3.The temperature will rise rapidly to meet the requirements of the material mixing process in the hot mixer.

4.The materials from hot mixer will be loaded into the cooling mixer automatically.

5.The materials will be cool down quickly to meet the production process requirement by low-speed mixing blade movement and heat exchange with the water cooling system in the cooling mixer.

SRL-Z	Heat/Cool	Heat/Cool	Heat/Cool	Heat/Cool	Heat/Cool
Total Volume(L)	100/200	200/500	300/600	500/1000	800/1600
Valid Volume(L)	65/130	150/320	225/380	375/650	600/1050
Stirring Speed(Rpm)	650/1300/200	475/950/130	475/950/100	430/860/60	370/740/50
Mixing Time(M)	8-12	8-12	8-12	8-12	8-12
Motor Power(Kw)	14/22/7.5	30/42/11	40/55/11	55/75/15	83/110/22
Output(kg/pot)	50	90	120	180	300

300L 600L PP PE PVC Mixing Machine 220V / 380V High Speed PVC Mixer

Product Tags:

300L PVC Mixing Machine

600L PVC Mixing Machine

380V High Speed PVC Mixer

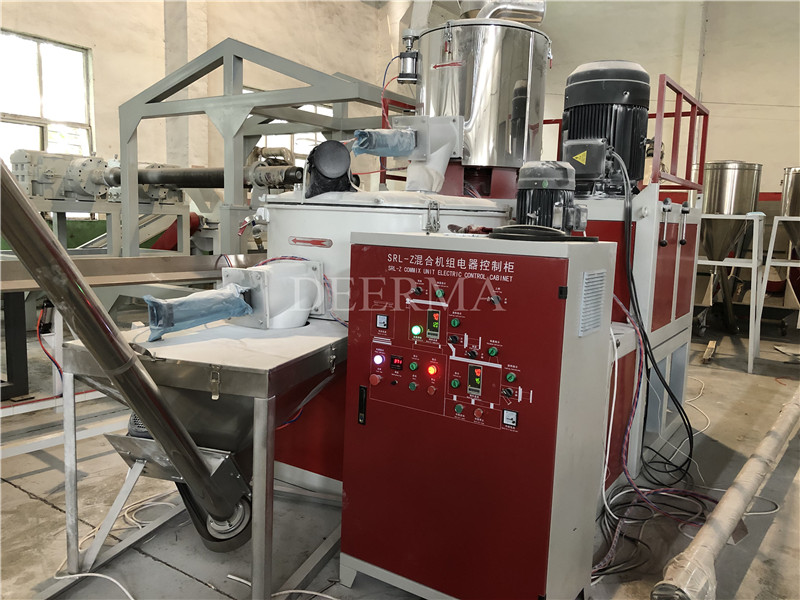

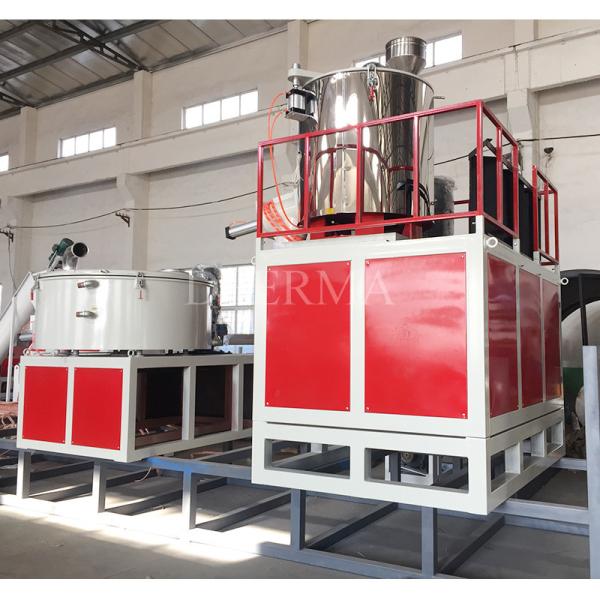

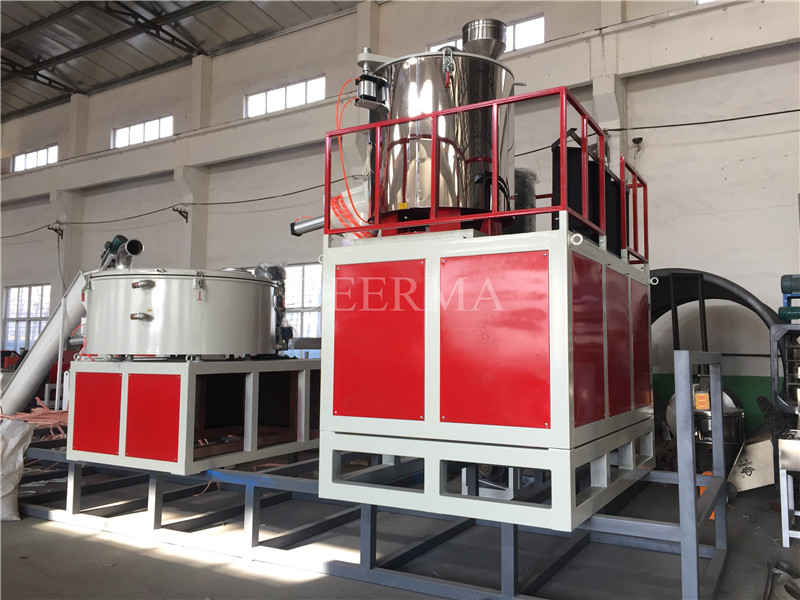

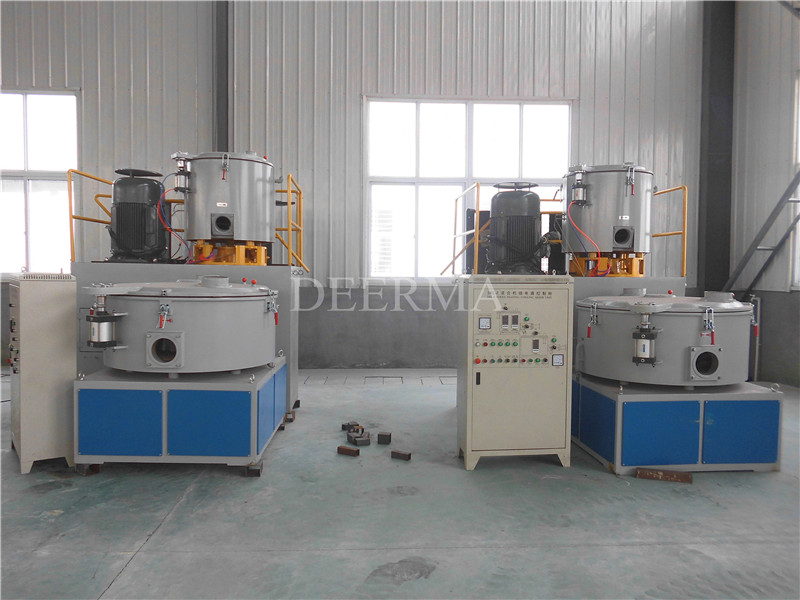

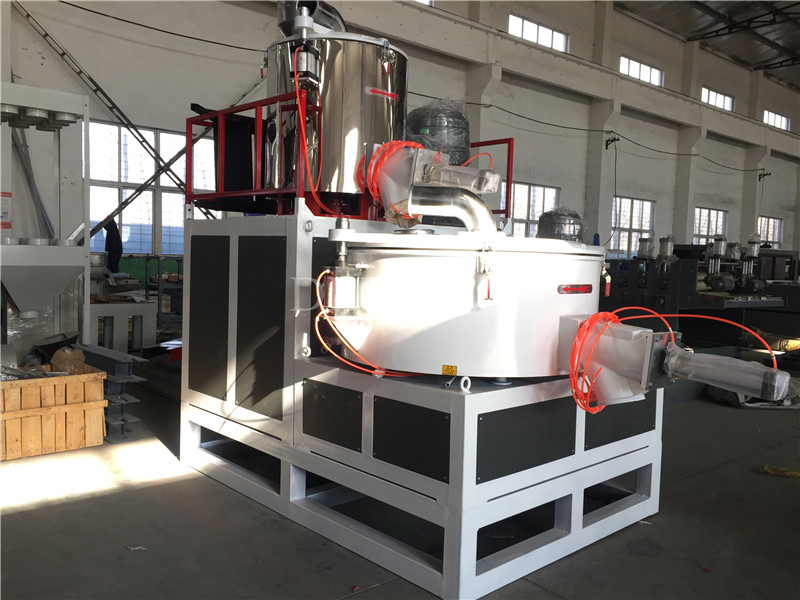

300L 600L PP PE PVC Mixing Machine 220V / 380V High Speed PVC Mixer Images
